Plastic Model for graduate thesis - Geological analysis of a landslide
Some photos of the work process that make us accomply the job.
Respectively below:

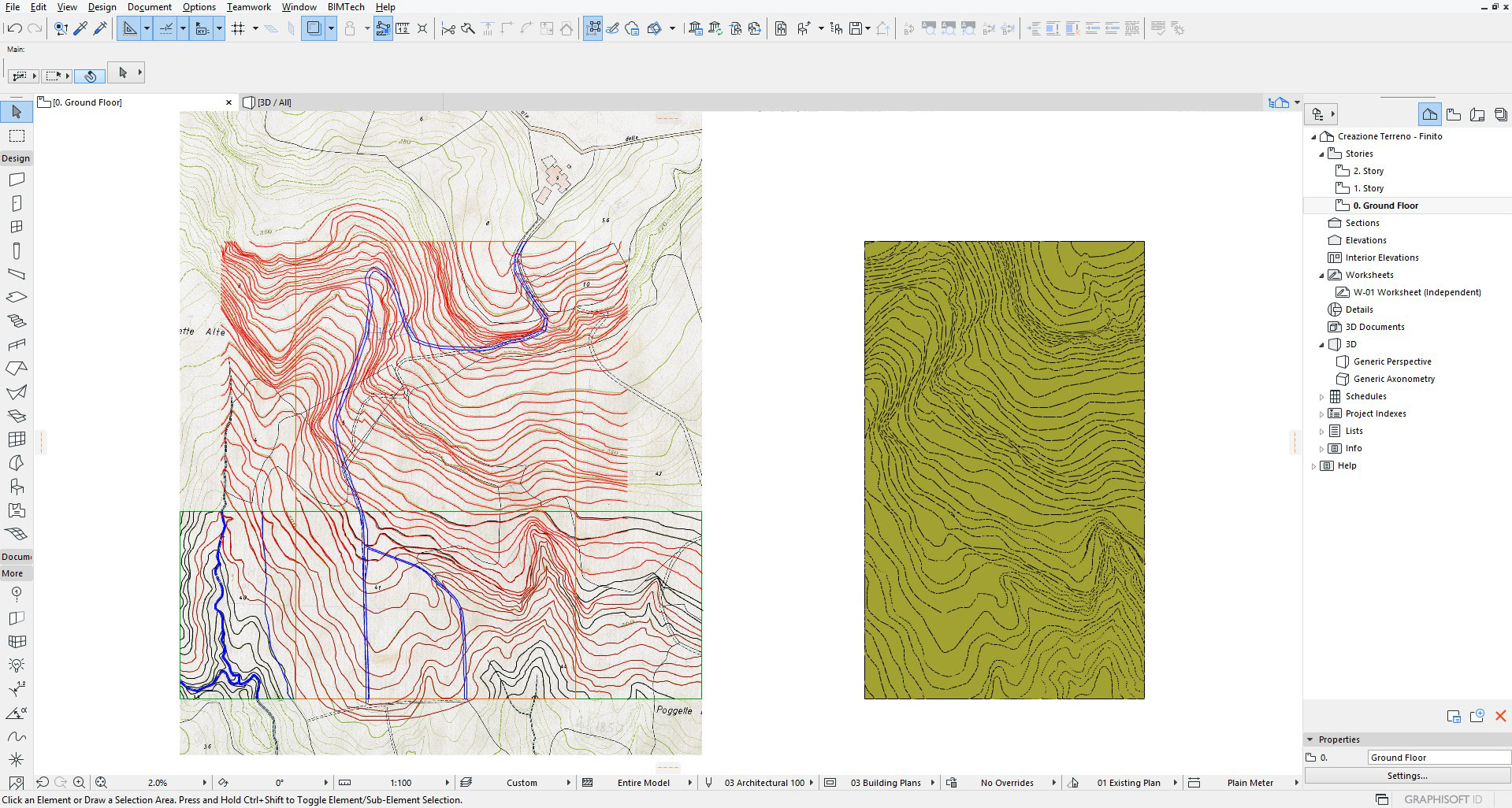

  1- Contour line reconstruction

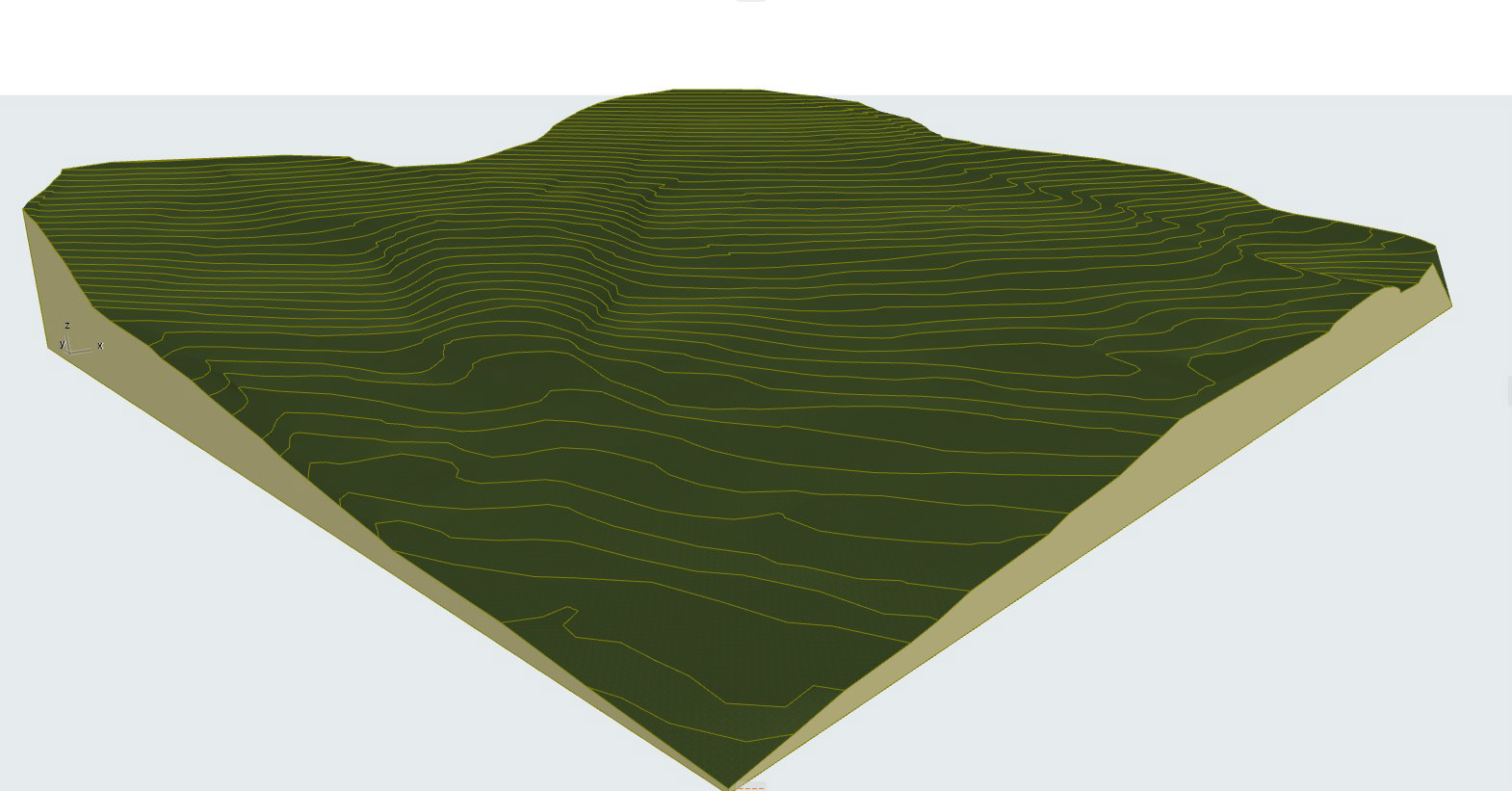

  2- Base Terrain model

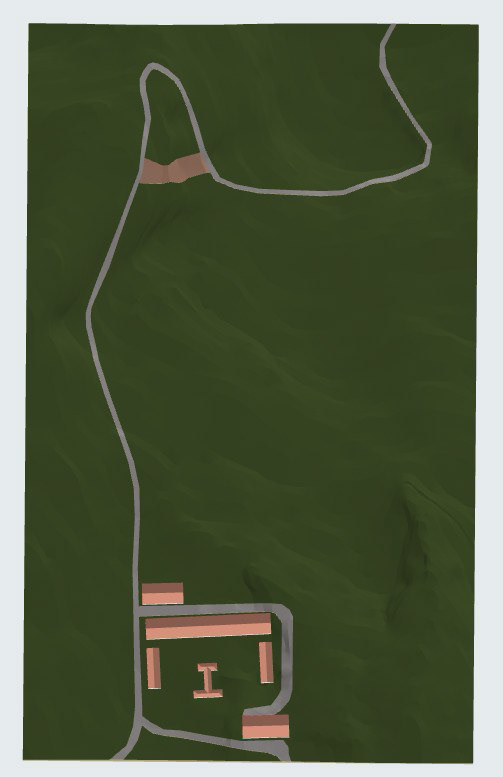

  3- Terrain with street and houses

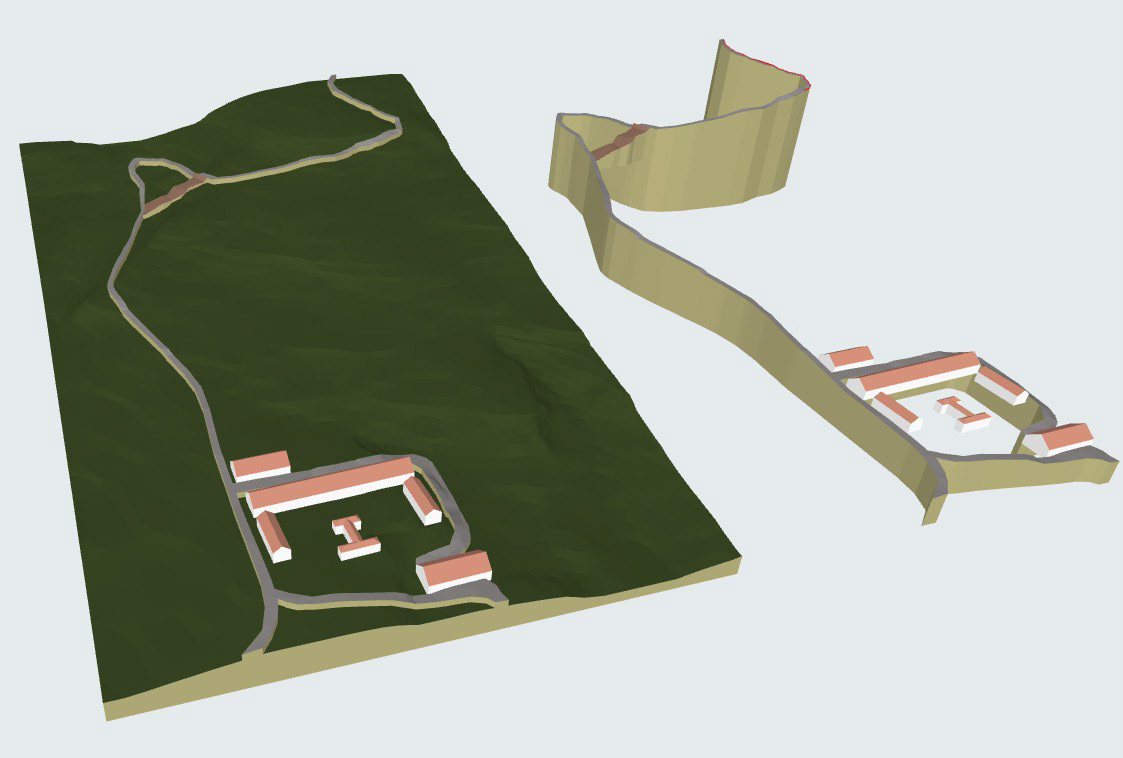

  4- Perspective view

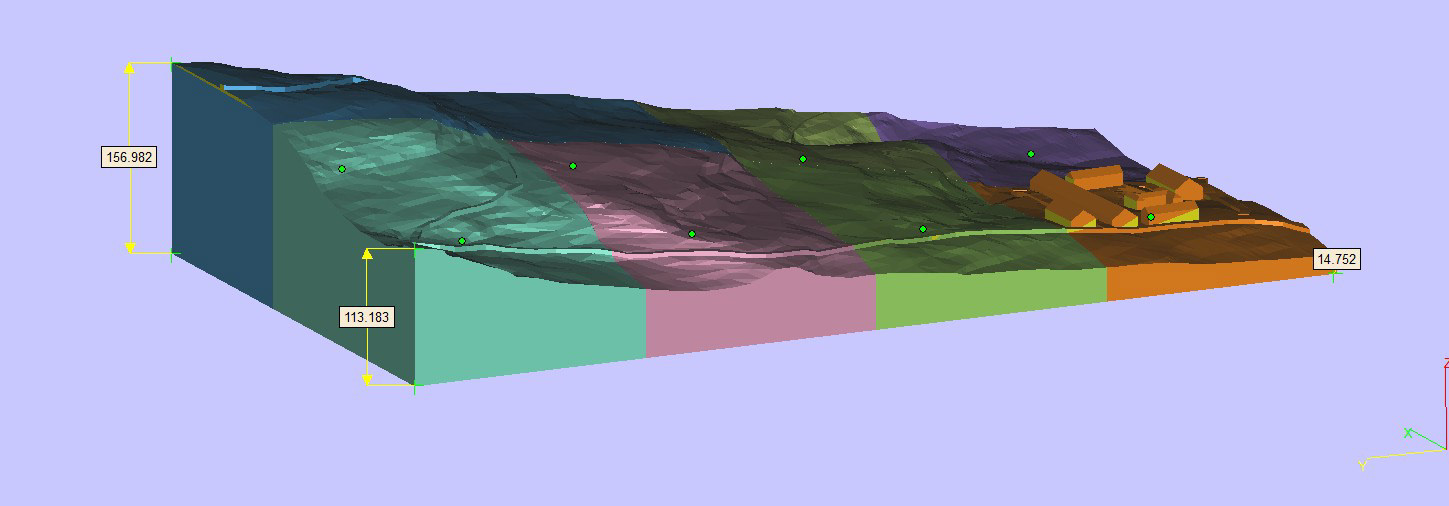

  5- Subdivision of the 3D model for printing
  6- As above, different angle view

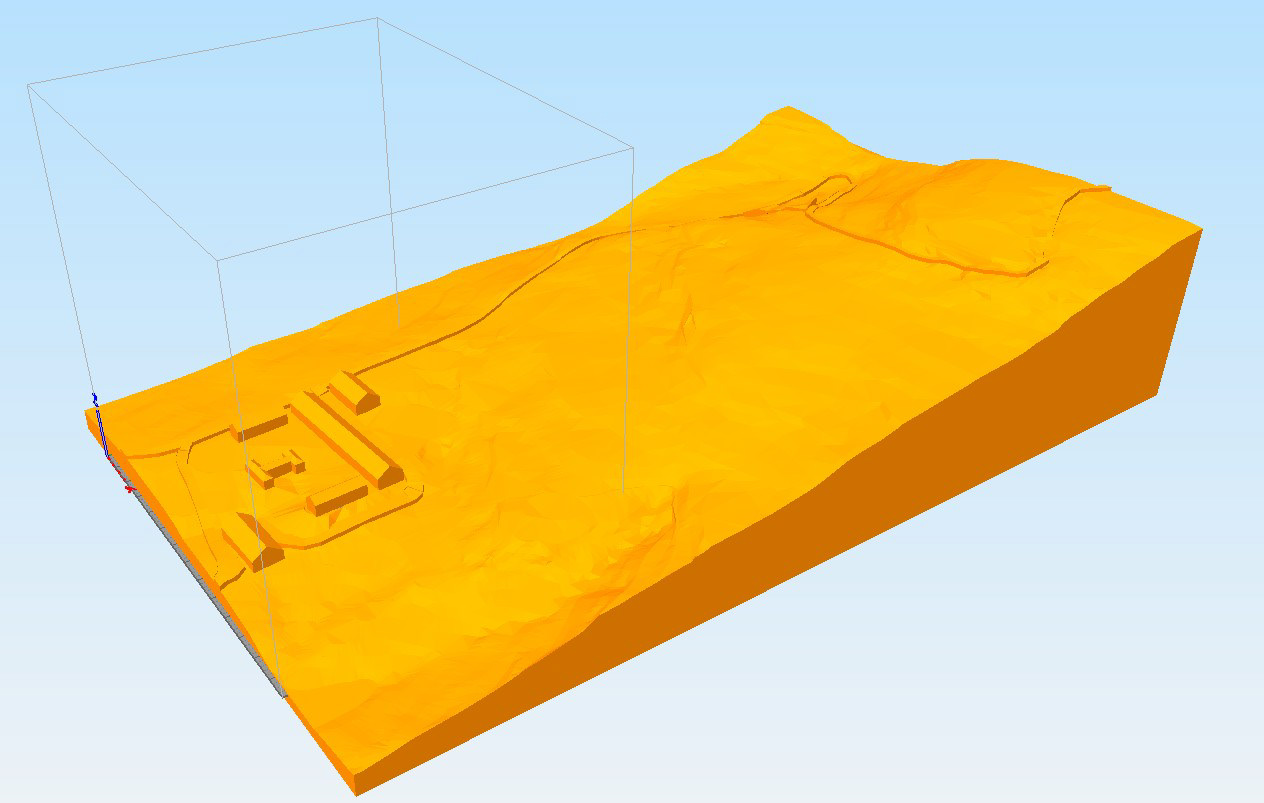

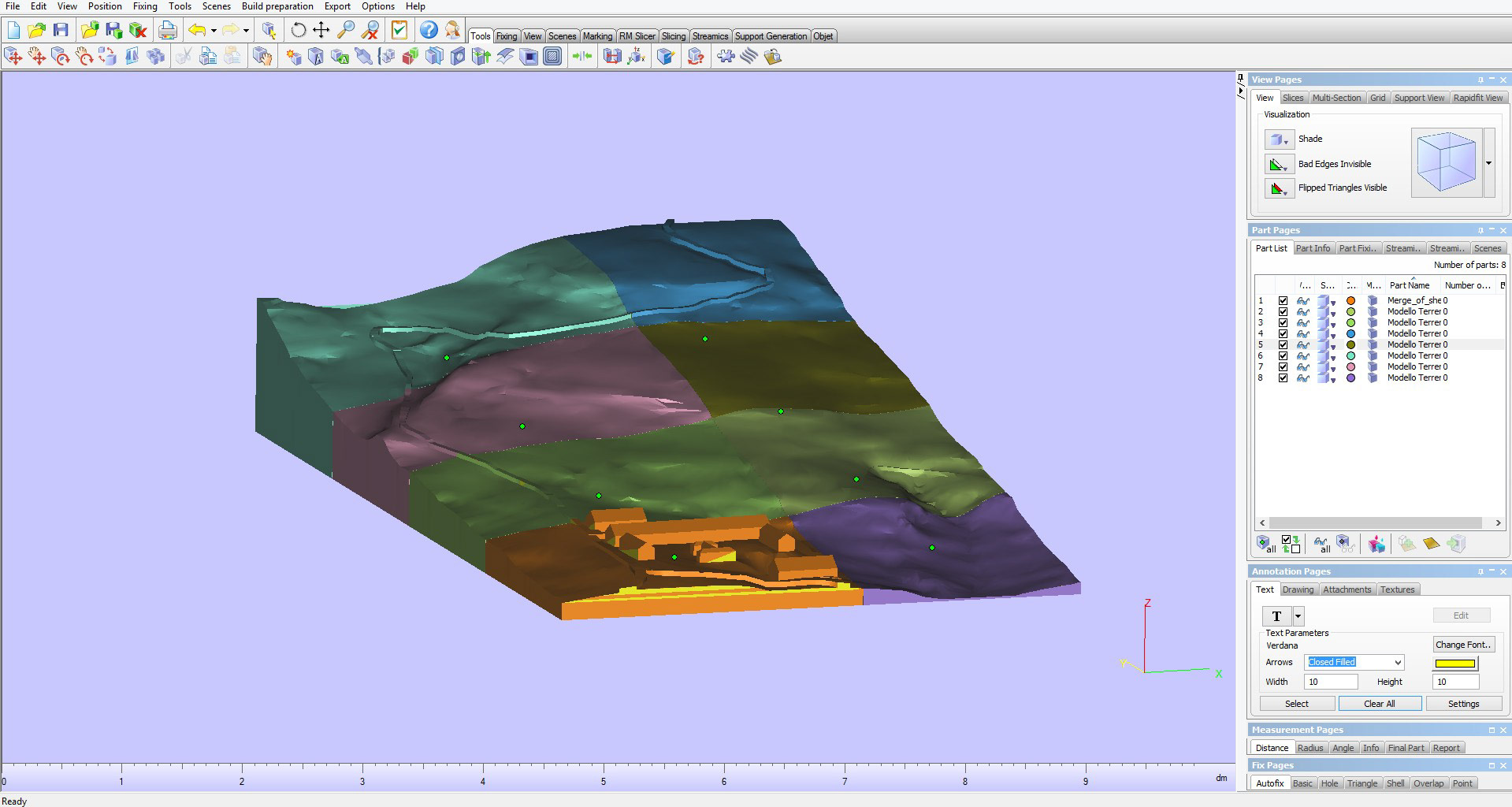

  7- Import in 3D Printing software

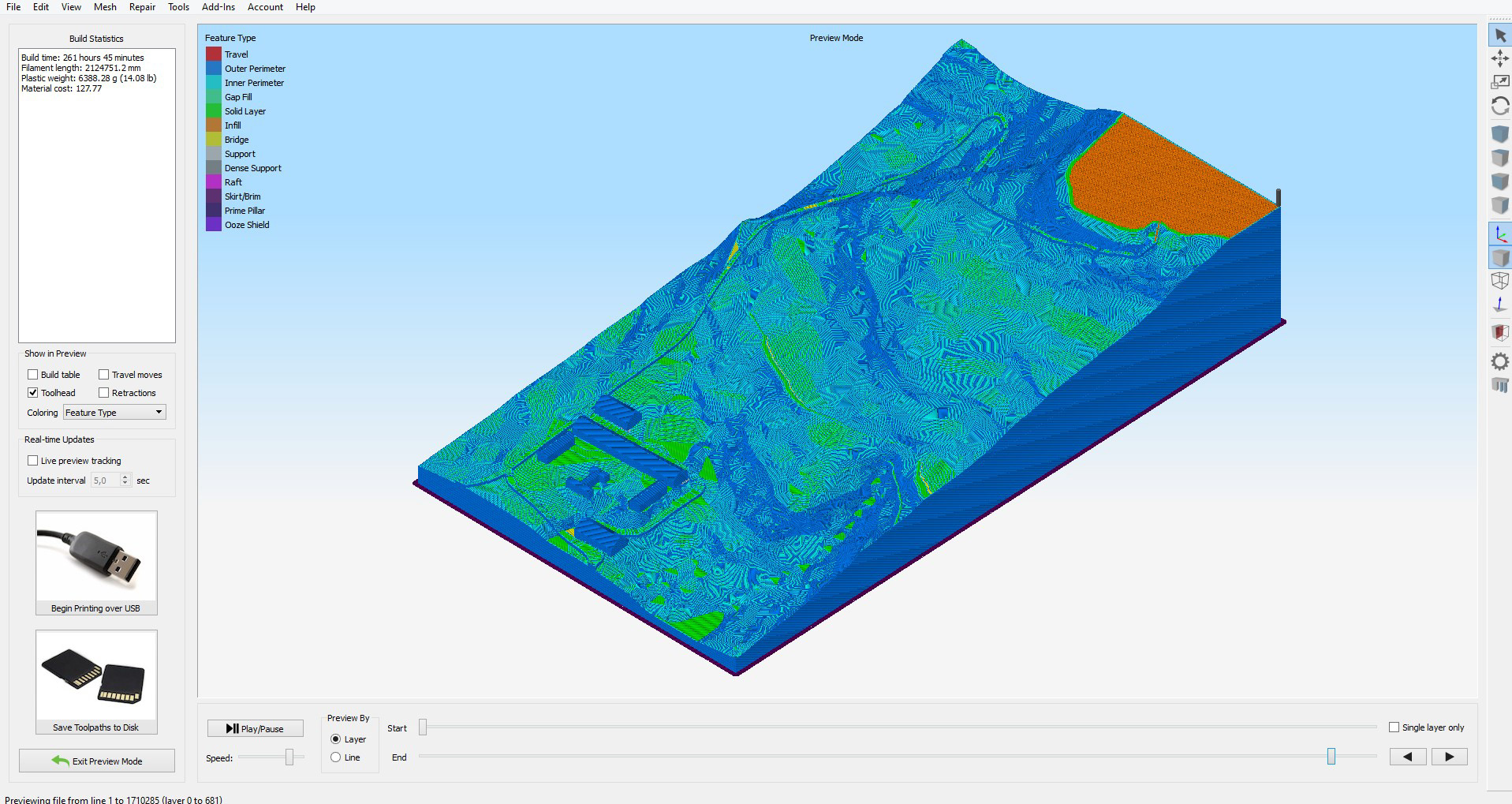

  8- XYZ G Code generation for 3D Printer

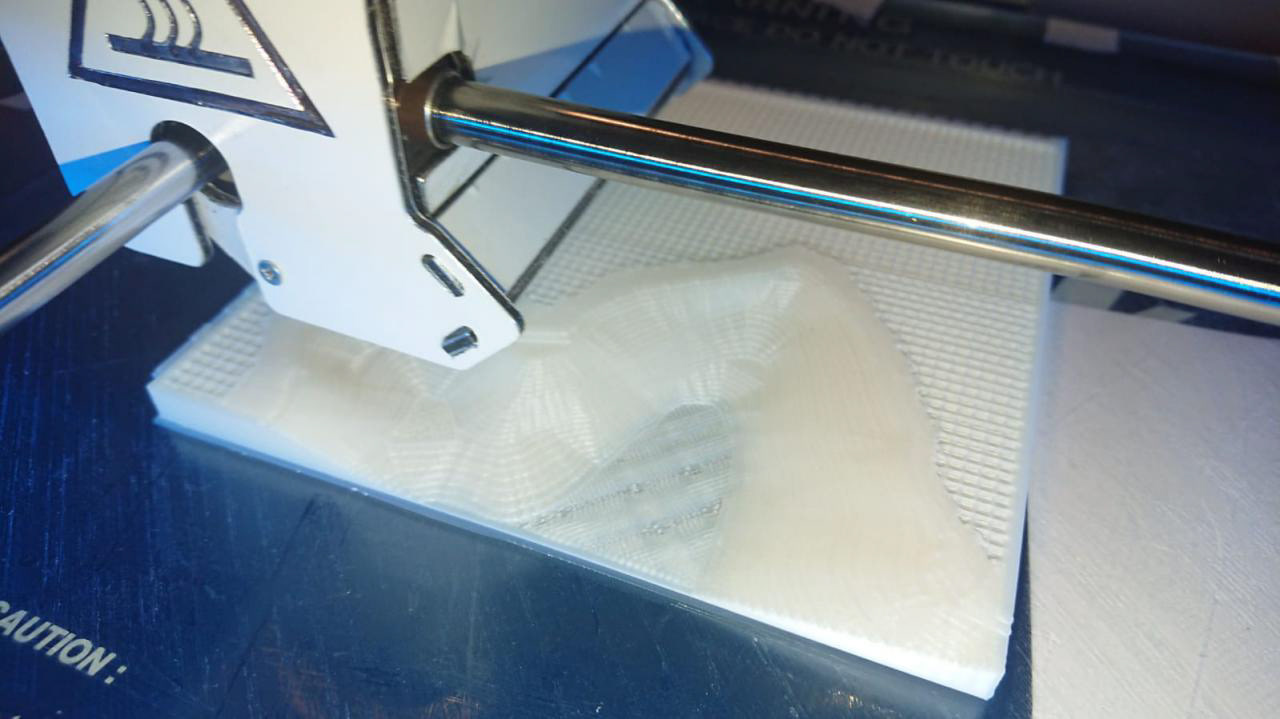

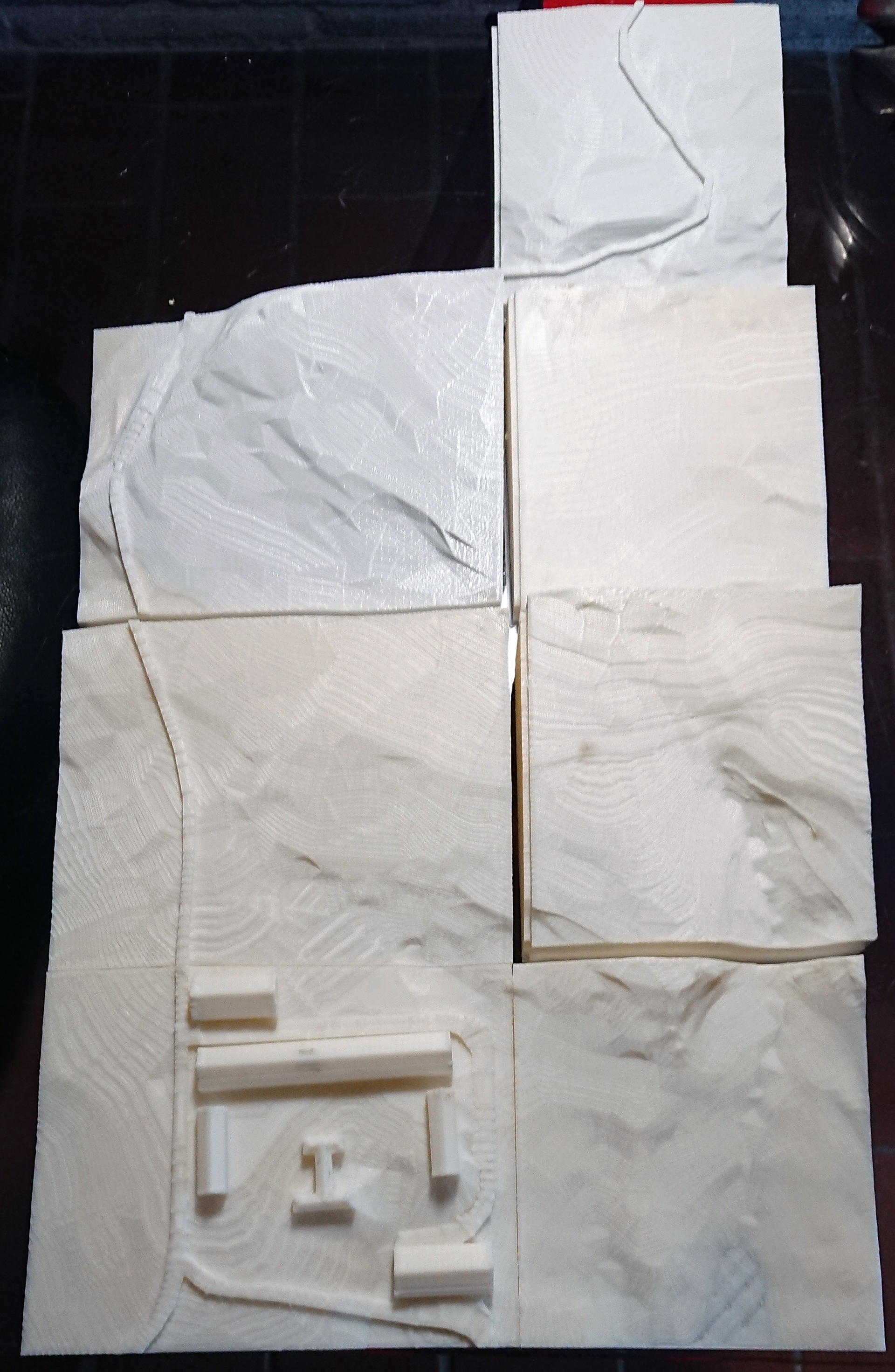

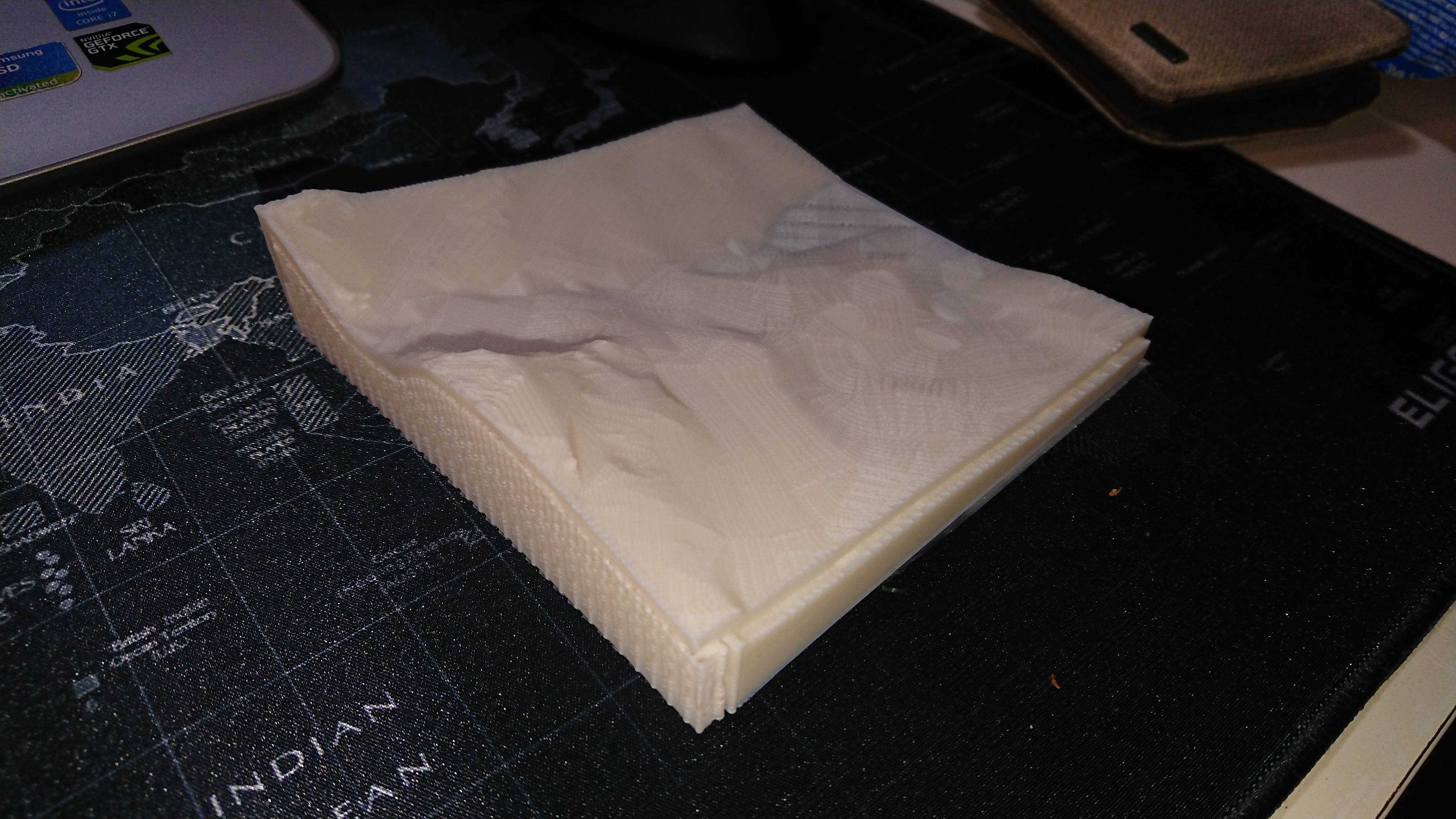

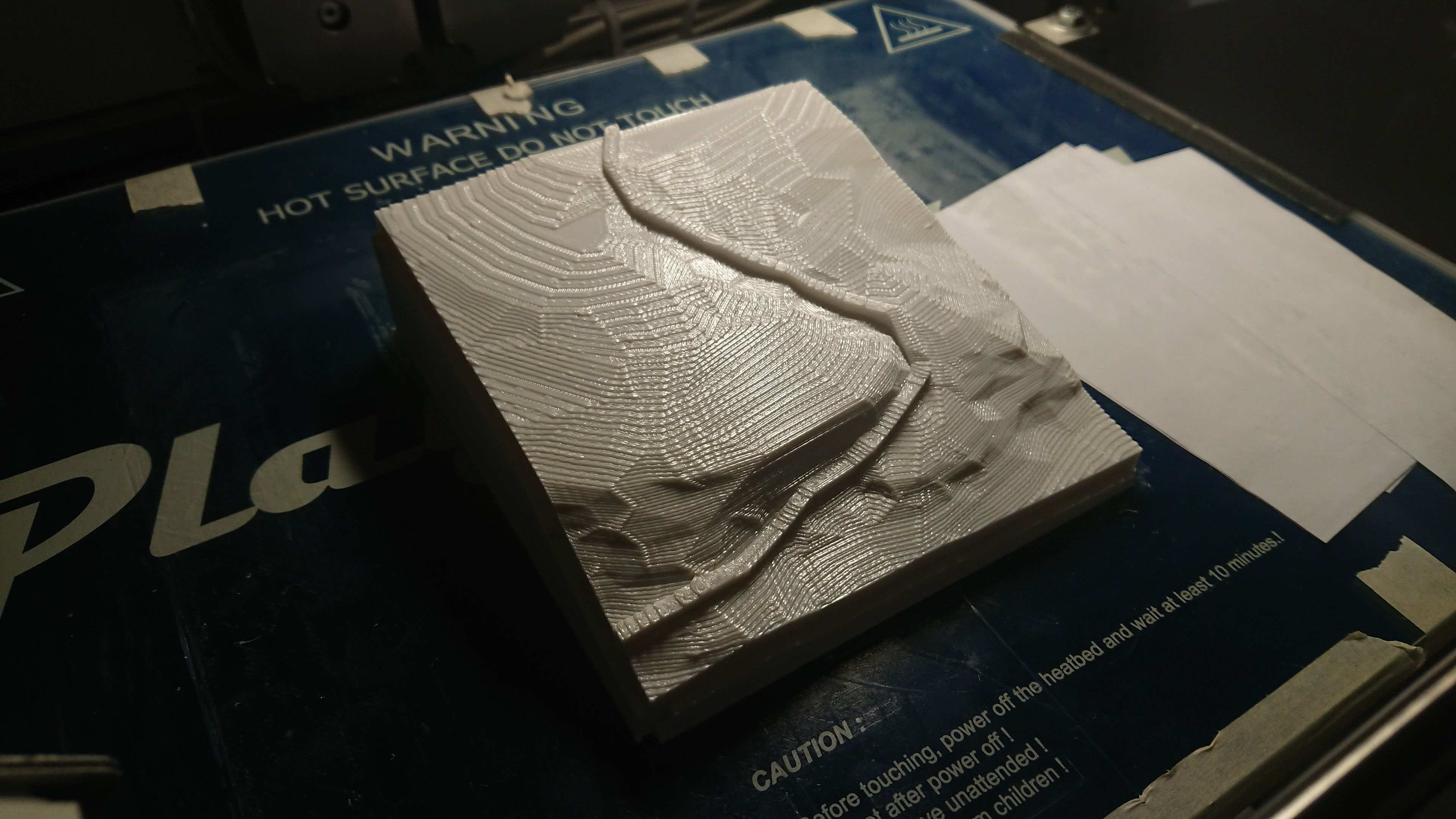

  9- Printing process, piece by piece

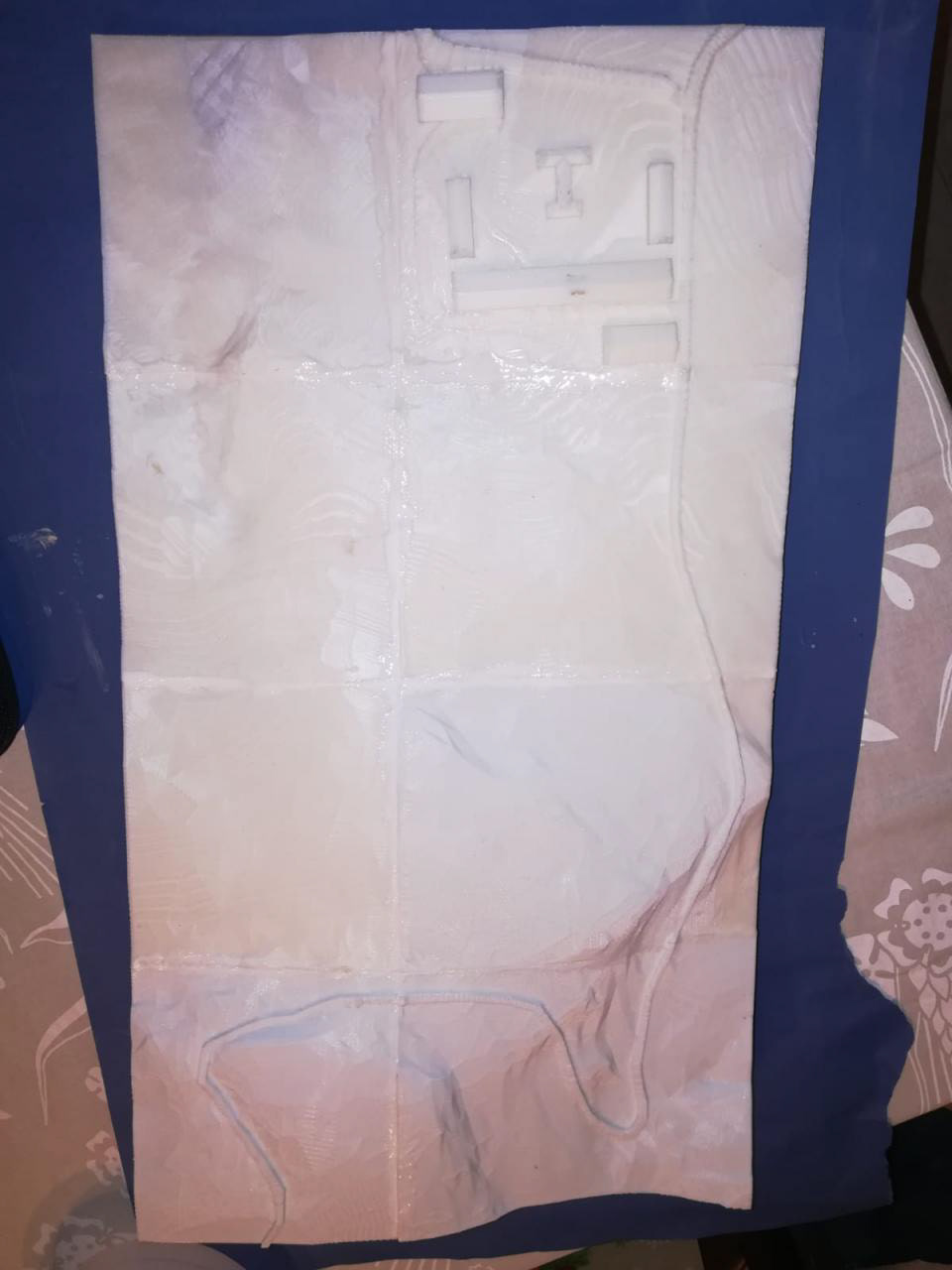

10- Sticking process

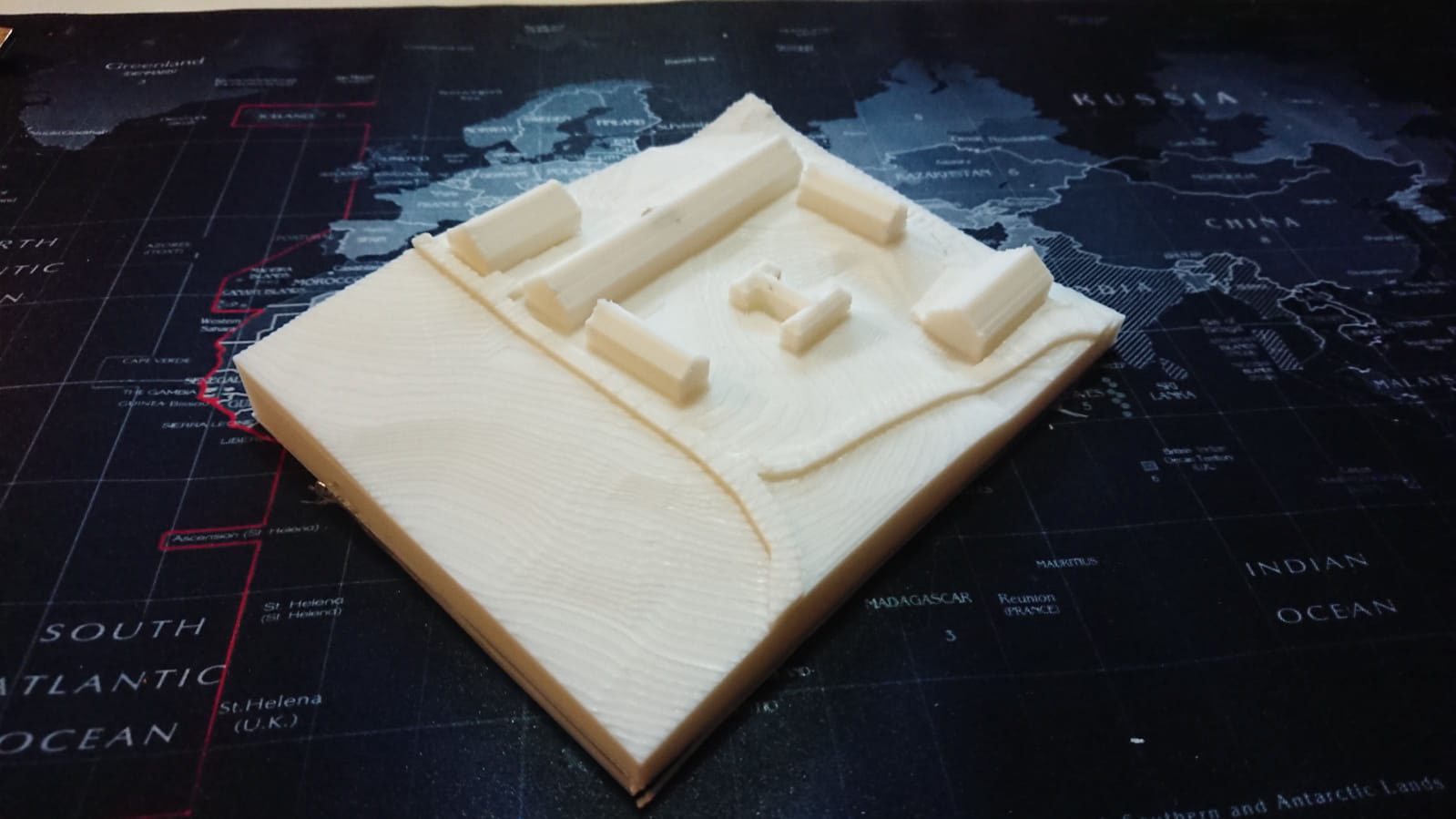

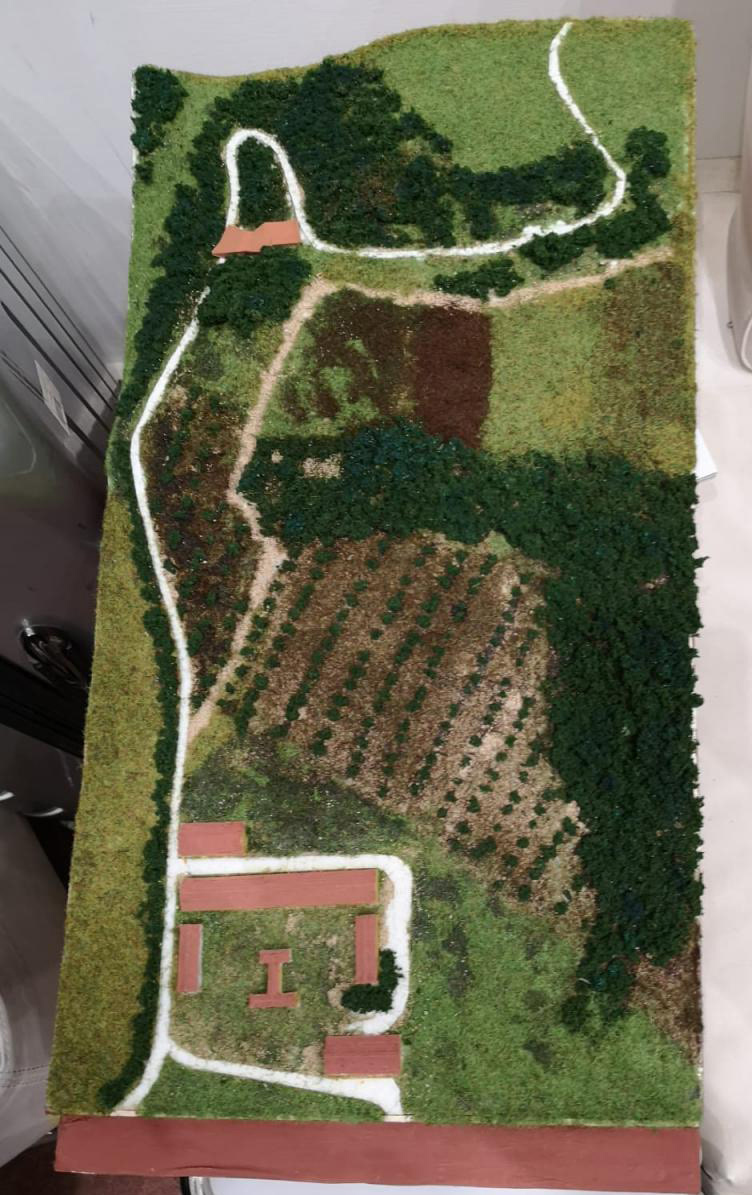

11- Plastic model completed and colorized
